600V SE-R Solar Cable | UL Certified Copper or Aluminum PV Wire | 6AWG–4/0AWG | XLPE Insulated, PVC Jacket

The 600V SE-R solar cable is a UL854 and UL1893 certified photovoltaic wire designed for efficient and durable power transmission in residential, commercial, and utility-scale solar systems. Constructed with either Class B copper or aluminum conductor, XLPE insulation, and a rugged gray PVC outer jacket, this SE-R cable offers superior electrical performance, flame resistance, and environmental protection.

Send email to us

Product Detail

Product Tags

Ideal for wet, dry, and underground installations, this cable is a trusted choice for PV wire manufacturers, installers, and solar engineering firms requiring reliable, long-lasting power cabling.

Product Specifications

Item	Details
Conductor Size	6AWG ~ 4/0AWG
Conductor Material	Class B Copper or Aluminum
Rated Voltage	600V
Rated Temperature	-40°C to +90°C
Insulation	XLPE, Black
Jacket Material	PVC, Gray
Binder	Reinforcement Binder
Standards	UL854, UL1893

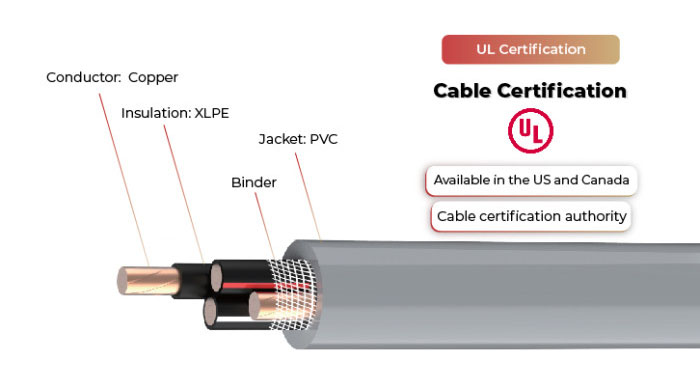

SE-R Solar Cable Product Description

Cable Name	Cross Section	Insulation Thickness	Ground Size (AWG)	Jacket Thickness	Cable O.D.	Conductor Resistance Max
Cable Name	(AWG)	(mm)	Ground Size (AWG)	(mm)	(mm)	(Ω/km,25℃)
600V Solar Cable SE-R UL	6	1.14	1×6	0.76	18.4	0.411
	4	1.14	1×6	0.76	20.3	0.258
	3	1.14	1×5	0.76	22.1	0.205
	2	1.14	1×4	0.76	24	0.162
	1	1.4	1×3	0.76	29.1	0.128
	1/0	1.4	1×2	0.76	31.5	0.102
	2/0	1.4	1×1	0.76	34.2	0.081
	3/0	1.4	1×1/0	0.76	37.1	0.064
	4/0	1.4	1×2/0	0.76	42.6	0.051

Key Features

UL Certified – Meets North American safety and performance standards
Class B Conductor – Available in copper or aluminum for versatile applications
XLPE Insulation + PVC Jacket – Excellent mechanical, chemical, and flame resistance
600V Rated – Ideal for low-voltage solar and electrical systems
UV & Moisture Resistant – For both wet and dry environments
Low Smoke, Halogen-Free – Enhanced safety in enclosed or fire-risk areas
Reinforced Binder Layer – For structural integrity and durability

Application Scenarios

Solar Energy Systems – From residential rooftops to utility solar farms
Service Entrance Wiring – Ideal for multi-conductor solar cable bundles
Wet & Underground Installations – Water- and dirt-resistant for direct burial
Commercial Building PV Arrays
Cable Trays, Conduits, and Raceway Systems
Power Distribution for Inverters and Junction Boxes

Why Partner with Us?

OEM/ODM Available – Customize size, length, color, jacket printing, and packaging
Bulk Order Ready – Low MOQ and fast production
Certified Factory – ISO9001, UL854, UL1893 compliance
Export Expertise – Supplying to North America, Europe, MENA, and Asia-Pacific
