2kV RPVU90/RPVU105 Solar PV Cable | Dual Layer XLPO Insulation | Copper Conductor | CSA Certified PV Wire Manufacturer
Key Features:
-

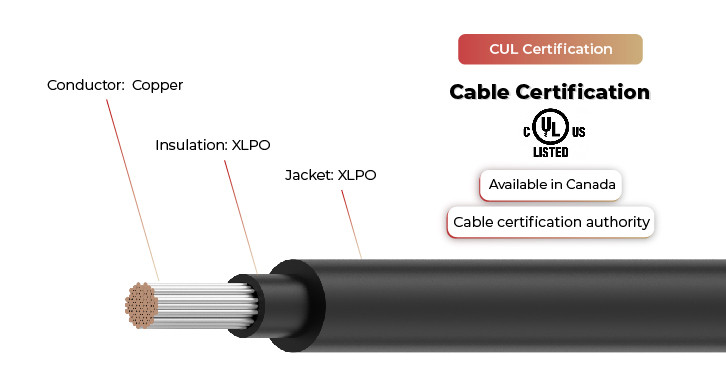

Dual XLPO Insulation: Enhanced protection with colored outer and inner layers for added durability.
-
High Voltage Rating: Supports up to 2000V DC, perfect for high-efficiency PV systems.
-
Wide Temperature Range:
• RPVU90: -40°C to +90°C
• RPVU105: -40°C to +105°C -
UV, Flame, and Moisture Resistant: Designed for direct burial, outdoor exposure, and extreme weather.
-
Low Smoke, Halogen-Free: Ensures safety in fire-prone areas.
-
Available Sizes: From 14AWG to 2000kcmil for flexibility in design and installation.
-
CSA Certified: Complies with CSA C22.2 NO.271:11 and C22.2 NO.38, ensuring North American market compatibility.
Applications:
-
Solar Power Systems: Used to interconnect solar panels and inverters.
-
Ground-Mounted PV Arrays
-
Residential Rooftop Installations
-
Commercial Solar Projects
-
Utility-Scale Solar Farms
-
Off-Grid and Remote Power Solutions
Color Options: Black, Red, White, or Custom Colors Available
Conductor Type: Tinned or bare copper PV wire
RPVU90, RPVU105 Solar Cable Product Description
|
Cable Name |
Cross Section |
Inner Layer Thickness |
Inner Layer O.D. |
Outer Layer Thickness |
Cable O.D. |
Conductor Resistance Max |
|
(AWG) |
(mm) |
(mm) |
(mm) |
(mm) |
(Ώ/km,20°C) |
|
|
2kV RPVU90, RPVU105 Dual Layer |
12 |
1.16 |
4.58 |
0.38 |
5.1 |
5.43 |
|
10 |
1.16 |
5.19 |
0.38 |
5.6 |
3.41 |
|
|
8 |
1.35 |
6.31 |
0.76 |
7.4 |
2.14 |
|
|
6 |
1.69 |
7.9 |
0.76 |
9.8 |
1.35 |
|
|
4 |
1.69 |
9.1 |
0.76 |
11 |
0.848 |
|
|
2 |
1.69 |
10.57 |
0.76 |
12.3 |
0.534 |
|
|
1 |
2.02 |
12.22 |
1.14 |
14.7 |
0.423 |
|
|
1/0 |
2.02 |
13.23 |
1.14 |
15.7 |
0.335 |
|
|
2/0 |
2.02 |
14.04 |
1.14 |
16.5 |
0.266 |
|
|
3/0 |
2.02 |
15.64 |
1.14 |
18.1 |
0.211 |
|
|
4/0 |
2.02 |
17.04 |
1.14 |
19.5 |
0.167 |
