600V USE-2 Solar Cable | UL Certified Aluminum PV Wire | 6AWG–2000kcmil | XLPE Insulated | Direct Burial Rated

600V USE-2 Solar Cable | UL Certified Aluminum PV Wire | 6AWG–2000kcmil | XLPE Insulated | Direct Burial Rated Featured Image
  • 600V USE-2 Solar Cable | UL Certified Aluminum PV Wire | 6AWG–2000kcmil | XLPE Insulated | Direct Burial Rated

This 600V USE-2 solar cable is a cost-effective and durable solution for photovoltaic wiring systems, particularly suitable for residential, commercial, and utility-scale solar projects. Manufactured with aluminum conductors and XLPE insulation, this wire is UL854 and UL1893 certified, ensuring dependable performance and compliance with North American safety standards.


Product Detail

Product Tags

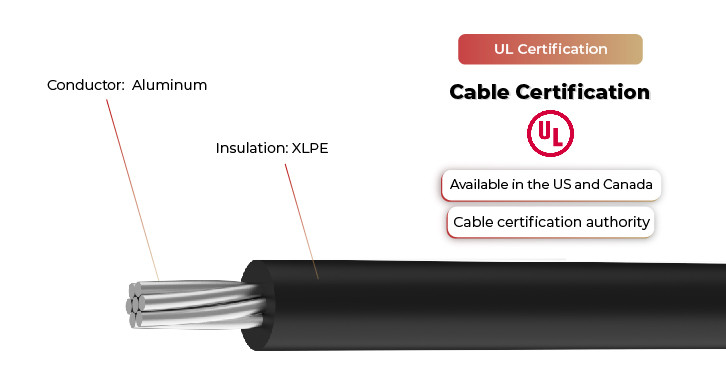

aluminum pv wire-2

As a trusted PV wire manufacturer, we offer this cable in a range of sizes from 14AWG to 2000kcmil, providing lightweight, corrosion-resistant, and efficient energy transmission options for your solar installation needs.

Product Specifications

Item Details
Conductor Size 14AWG ~ 2000kcmil
Conductor Material Aluminum
Rated Voltage 600V
Insulation Material XLPE (Cross-linked Polyethylene)
Cable Type USE-2
Rated Temperature -40°C to +90°C
Color Black (standard)
Standards UL854, UL1893
Packaging Coils, reels, or customized lengths available
Key Features

  • UL Certified: Meets UL854 and UL1893 standards for safe and reliable installation.

  • Aluminum Conductor: Lightweight, corrosion-resistant, and cost-effective.

  • XLPE Insulation (USE-2 Type): Provides excellent thermal and chemical resistance.

  • 600V Rated: Suitable for lower-voltage solar circuits and home/commercial systems.

  • Direct Burial Capability: Can be safely installed underground without conduit.

  • Moisture and UV Resistant: Designed for use in wet, dry, and sun-exposed environments.

  • Flexible Installation: Ideal for use in raceways, trays, or exposed outdoor runs.

USE-2 Solar Cable Product Description

Cable Name

Cross Section

Inner Layer Thickness

Cable O.D.

Conductor Resistance Max

(AWG)

(mm)

(mm)

(Ω/km,25℃)

600V Solar Cable USE-2 UL

6

1.52

7.57

0.674

4

1.52

8.76

0.424

2

1.52

10.24

0.266

1

2.03

12.01

0.211

1/0

2.03

13

0.167

2/0

2.03

14.1

0.133

3/0

2.03

15.32

0.105

4/0

2.03

16.71

0.084

250

2.41

18.59

0.071

300

2.41

19.91

0.059

350

2.41

21.11

0.05

500

2.41

24.28

0.035

600

2.79

27.58

0.029

700

2.79

29.44

0.024

Application Scenarios

  • Solar Panel to Inverter Connections

  • Residential Rooftop Solar Systems

  • Commercial Building Solar Arrays

  • Low-Voltage Solar Power Systems (≤600V DC)

  • Solar Farms with Long Cable Runs

  • Wet, Dry, and Underground Installations

  • Raceways, Cable Trays, or Exposed Conduit Systems

Why Choose Our USE-2 PV Wire?

  •  Direct Factory Supply with Fast Lead Times

  •  UL / CSA / ISO Certified

  •  Custom Sizes and OEM Available

  •  Exported to North America, Europe, Middle East & Asia

  •  Professional PV Wire Manufacturer with 10+ Years Experience
