Solar Branch Connector Y Connector IP68 1500V Solid Copper Terminal for PV Solar Series Parallel Circuits
We support customization based on your PDF design.
Key Features
Premium Material & Certified Quality
Made from high-quality PPE/PPO insulation and tinned copper conductors, the connector guarantees excellent electrical conductivity and stable crimping performance. Fully TÜV, CE, and ISO certified, ensuring compliance with international standards for safety and reliability.
High Load Tolerance
With a rated current of 50A and maximum voltage of 1500V DC, the connector delivers exceptional power-handling capacity. It maintains reliable performance even under continuous heavy load and extreme environmental conditions ranging from -40°C to +85°C.
IP68 Waterproof & Dustproof
Designed with a high-quality sealing ring, the connector offers complete protection against water, dust, and corrosion. This ensures long-term outdoor durability and stable performance in harsh climates.
Secure Self-Locking Design
Equipped with a built-in auto-locking mechanism, the connector prevents accidental disconnection and guarantees safety during operation. It can only be released using a special wrench tool, ensuring secure and stable connections in all environments.
Universal Compatibility
Compatible with 14AWG–10AWG (2.5mm²–6mm²) solar cables, the Winpower Y Branch Connector supports easy and fast installation with most solar panel connectors available in the market.

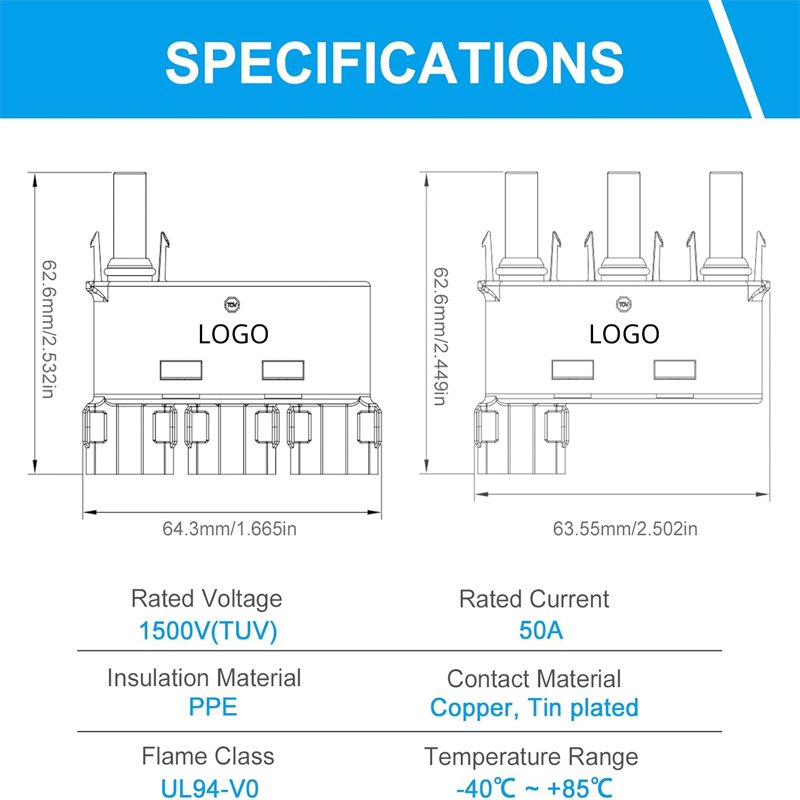

Technical Specifications
| Parameter | Description |
|---|---|
| Connector Type | Ring |
| Contact Material | Copper |
| Insulation Material | PPO / PPE |
| Terminal Type | Ring Terminal |
| Material | Copper |
| Certification | TÜV, CE, ISO |
| Rated Current | 50A |
| Rated Voltage | 1500V DC |
| Temperature Rating | -40°C ~ +85°C |
| Waterproof Level | IP68 |
| Unit Count | 1 Pair |
| Package Dimensions | 4 × 3 × 1 in (10.2 × 7.6 × 2.5 cm) |
| Item Weight | 2.39 oz (67.76 g) |
| Model Number | 3to1 |
Why Choose Winpower Solar Branch Connectors?
IP68 waterproof for superior outdoor protection
High current carrying capacity for efficient energy transfer
Quick and easy assembly, no special training required
Auto-lock system for safe and reliable connections
Ideal for fast series or parallel PV connections
Durable and re-usable, designed for multiple insertions
Applications
Winpower Solar Branch Connectors are widely used for series or parallel connections between PV modules in solar power systems. They help maintain stable voltage configurations to match the system’s battery or inverter setup, ensuring optimal efficiency and safety.
Perfect for:
-
Residential rooftop PV systems
-
Commercial and industrial solar installations
-
Off-grid and hybrid solar energy systems
-
Portable and field solar generator setups
Winpower — Reliable Connections for Sustainable Solar Power.
Customer Questions & Answers
1. What are the rated voltage and current for the Winpower Solar Branch Connector?
The product is rated for up to 1500 V DC and supports a nominal current of 50 A, making it suitable for high-power solar panel configurations.
2. What cable sizes are compatible with the Winpower branch connector?
It supports solar cables in the size range of approximately 14 AWG to 10 AWG (roughly 2.5 mm² to 6 mm²), allowing connection of many standard PV module cables.
3. What does the IP68 rating mean for this connector?
IP68 indicates the connector is completely dust-tight and can withstand continuous immersion in water under specified conditions. That means excellent protection in harsh outdoor environments.
4. What materials and certifications are used in the Winpower connector?
It uses a tinned copper conductor for reliable electrical connectivity and a PPE/PPO insulation body. The unit is designed to meet TÜV, CE, and ISO standards for safe and reliable operation.
5. What temperature range can the connector handle?
It is specified for extreme environments, with operational limits from about -40 °C up to +85 °C, ensuring stable performance in both cold and hot outdoor settings.
6. How does the locking system work for the Winpower connector?
The connector includes a self-locking mechanism that ensures the plug remains firmly connected in the field. A special wrench tool is required to release the connection, preventing accidental disconnection.
7. Can I use the Winpower branch connector for both series and parallel connections in a PV array?
Yes — while the primary use is parallel connection of solar panels (to combine their outputs while maintaining system voltage), it may also work in certain series-parallel configurations as long as the system meets the rated voltage/current limits.
8. Is installation straightforward or does it require special tools or training?
Installation is designed to be quick and easy: no advanced tutorial is required for assembly. However, to disconnect the self-locking mechanism safely, the dedicated wrench tool is required.
9. What are the main application scenarios for the Winpower connector?
Typical uses include rooftop and ground-mounted PV systems, off-grid and hybrid solar installations, and any scenario where panels are being connected in parallel (3-to-1 branch) and high voltage (up to 1500 V) is involved.
10. Why should I choose the Winpower Solar Branch Connector over generic connectors?
Because it offers a combination of features: IP68 waterproofing, high current carrying capacity (50 A), solid copper terminals with reliable crimping, broad temperature range, and a secure locking system intended for long-term outdoor use. These features can reduce maintenance, improve system reliability, and offer safer connections in high-voltage solar applications.
