PCIE4.0 High Speed Cable For Internal Use – 16Gbps Transmission | UL & RoHS Certified

SAS (Serial Attached SCSI) cables are used to connect storage devices like hard drives and

solid-state drives (SSDs) to servers or storage controllers,

especially in enterprise and data center environments.

They support high-speed data transfer and reliable point-to-point communication.

Product Detail

Product Tags

Upgrade your internal connectivity with our PCIE4.0 High Speed Cable, engineered to deliver ultra-fast 16Gbps data transmission for high-performance computing environments. Designed for precision and reliability, this cable is ideal for server systems, storage arrays, and high-speed backplane interconnections.

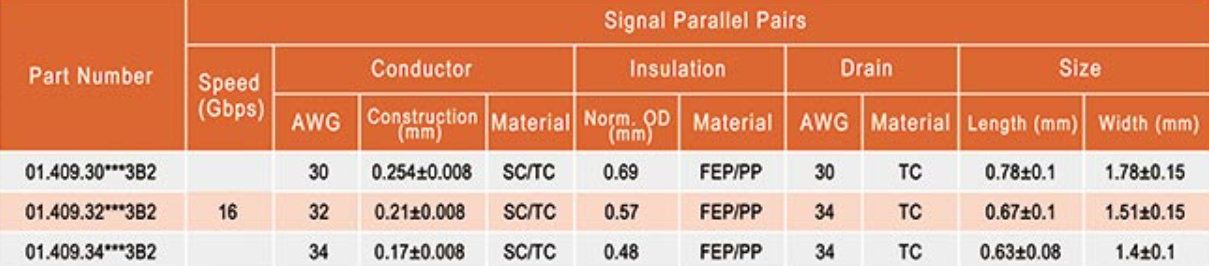

Specifications

Conductor: Silver Plated Copper / Tinned Copper

Insulation: FEP / PP (Fluorinated Ethylene Propylene / Polypropylene)

Drain Wire: Tinned Copper

Speed: 16Gbps

Jacket Material: PVC / TPE

Temperature Rating: 80℃

Voltage Rating: 30V

Applications

The PCIE4.0 High Speed Cable is specially designed for internal use in:

Data center servers

Enterprise-grade SSDs and RAID systems

HPC (High-Performance Computing) clusters

PCIe expansion cards and GPU interconnects

Industrial automation and embedded computing platforms

AI computing, machine learning, and deep learning systems

Certifications & Compliance

UL Style: AWM 20744

Standard: UL758

File Numbers: E517287

Flame Rating: VW-1

Environmental Compliance: RoHS 2.0

Why Choose Our PCIE4.0 Cable?

Stable high-speed data transfer
Low signal attenuation with high-quality insulation
Flame-retardant and environmentally safe materials
Fully compliant with international safety standards

Optimize your high-speed system design with a trusted solution. Inquire now on Alibaba to get custom lengths, breakout options, and OEM support for your specific PCIE4.0 cable needs.
