PCIE3.0 High Speed Cable for Internal Use – 6 Gbps Silver Plated Copper Cable | UL Certified | RoHS Compliant

Product Description:

Upgrade your internal data connections with our PCIE3.0 High Speed Cable, designed to deliver ultra-reliable 6Gbps data transmission for next-generation internal systems. Engineered for performance-critical environments, this cable features silver plated copper or tinned copper conductors, FEP/PP insulation, and tinned copper shielding, ensuring low signal loss and superior EMI protection.

Whether used in data centers, server racks, PCIe expansion slots, or high-performance computing (HPC) systems, this cable provides exceptional speed, durability, and signal integrity. Fully compliant with UL AWM 20744, UL758, and RoHS 2.0 standards, it ensures safety, environmental compliance, and long-term reliability.

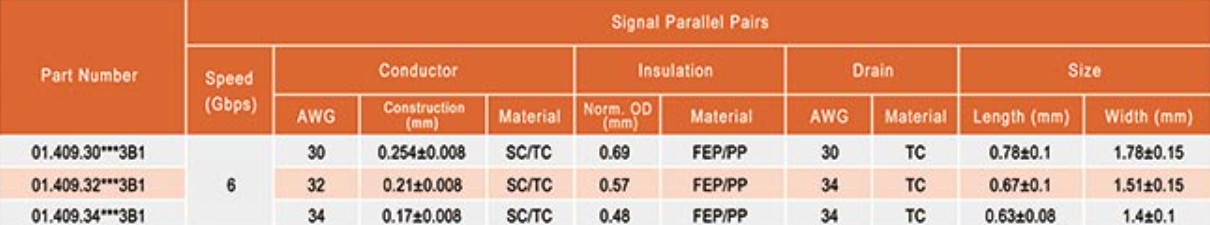

Specifications:

Conductor: Silver Plated Copper / Tinned Copper

Insulation: FEP / PP

Drain Wire: Tinned Copper

Shielding: Tinned Copper Braid

Jacket: PVC or Low-Smoke Halogen-Free (NHFR)

Speed: 6Gbps

Operating Temperature: 80℃

Voltage Rating: 30V

Applications:

Internal connections for PCIE 3.0 expansion cards

Server and storage system backplanes

Workstations and industrial PCs

AI and machine learning platforms requiring high-speed internal data transfer

Embedded systems and custom motherboard-to-backplane wiring

Safety & Compliance Certifications:

UL Style: AWM 20744

Standard: UL758

Temperature Rating: 80℃

Voltage Rating: 30V

Flame Rating: VW-1

Environment: RoHS 2.0 Compliant

UL File Numbers: E517287
