85Ω SAS 4.0 Cable | High-Speed Internal Data Transmission Cable | 12Gbps

Product Keywords

85Ω SAS 4.0 Cable, SAS 4.0 Internal Cable, 12Gbps SAS Cable, High-Speed Server Cable, SAS to SATA Cable

Product Description

High-Performance 85Ω SAS 4.0 Cable – Engineered for 12Gbps High-Speed Internal Data Transmission

Upgrade your enterprise storage systems with our 85Ω SAS 4.0 Cable, designed for internal high-speed data transmission in servers, RAID arrays, and data centers. With an impedance-controlled design, the cable ensures signal integrity and low crosstalk for demanding SAS 4.0 environments.

This cable is manufactured using silver-plated or tinned copper conductors, FEP/PP insulation, and a tinned copper drain wire. The shielding and durable PVC jacket ensure superior EMI performance and durability even under consistent thermal stress.

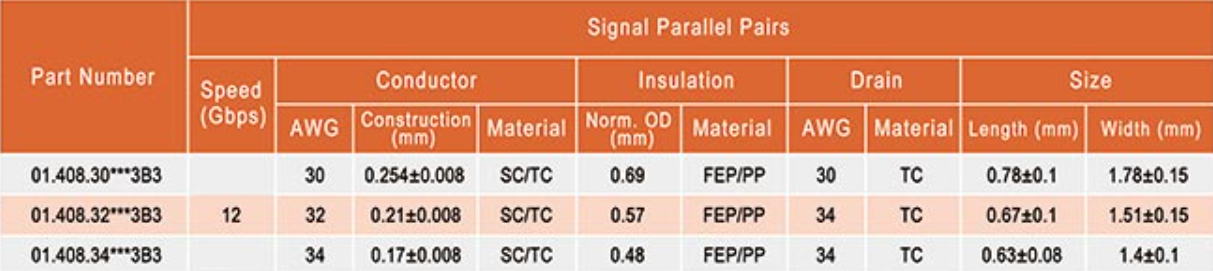

Key Specifications

Conductor: Silver-Plated Copper / Tinned Copper
Insulation: FEP / PP
Drain Wire: Tinned Copper
Shielding: Tinned Copper Braid
Jacket: PVC
Speed: Up to 12Gbps
Temperature Rating: 80℃
Voltage Rating: 30V
Impedance: 85 Ohms
Certifications & Compliance
Style: UL AWM 20744
Rating: 80℃, 30V, VW-1 Flame Test
Standard: UL758
File No.: E517287
Environmental Compliance: RoHS 2.0

Applications

Internal data transmission for enterprise storage systems

Server and RAID controller interconnects

High-speed internal cabling for HDDs, SSDs, and JBOD enclosures

Data centers, cloud infrastructure, and high-throughput computing

Compatible with SAS 4.0, SATA, and backplane architectures
