6 to 1 T Branch Connector Solar Panel Connectors Cable Splitter Coupler 1 Male to 6 Female and 1 Female to 6 Male, Solar Cable Connectors for Residential, Commercial Roofs, RVs (1 Pair)

Product Description

The Winpower 6 to 1 Solar T Branch Connector Set (1 Male to 6 Female and 1 Female to 6 Male) is designed for efficient and secure parallel connections between multiple solar panels. Built with premium materials and certified for high performance, these connectors ensure a stable, weatherproof, and long-lasting electrical connection in demanding solar power environments.

Key Features

6-in-1 Solar Branch Design

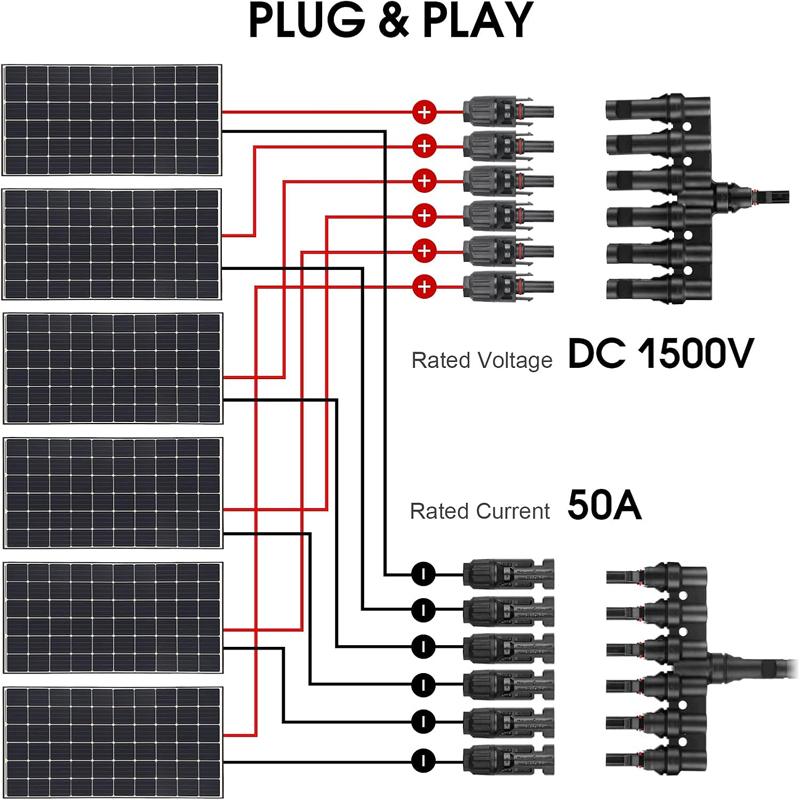

This connector set includes one 1-to-6 male (M/6F) and one 1-to-6 female (F/6M) adapter, allowing you to connect multiple solar panels in parallel easily. It is fully compatible with solar cables from 10AWG to 18AWG, ensuring flexible use for a wide range of PV systems.

Safe & Reliable Performance
Certified by TÜV, the Winpower solar connectors are made from UV-resistant and flame-retardant PPO material, offering excellent insulation and long-term reliability. The silver-plated copper contacts guarantee low contact resistance and stable conductivity, even under heavy current loads.

Waterproof & Weatherproof Protection
With an IP67 waterproof rating, these connectors are fully sealed to prevent water and dust intrusion. They are corrosion-resistant and suitable for use in extreme weather conditions, operating reliably from -40°C to +110°C (-40°F to 190°F).

Built-in Locking System
The integrated self-locking mechanism ensures a tight, secure connection. The locking clips prevent accidental disconnection, while still allowing for easy release by pressing both sides—no additional tools required.

Durable and Easy to Install
Compact, lightweight, and easy to handle, Winpower solar connectors feature a snap-in crimping system for quick installation. Designed to maintain excellent transmission stability, they are ideal for both DIY setups and professional solar projects.

Specifications

• Rated Voltage: 1500V DC

• Rated Current: 50A

• Waterproof Rating: IP67

• Insulation Material: PPO (UV-resistant, flame-retardant UL94-V0)

• Contact Material: Silver-plated Copper

• Operating Temperature: -40°C ~ +110°C

• Cable Compatibility: 1.31mm² / 4mm² / 6mm² (AWG18 / 12 / 10)

• Locking System: Snap-in type

• Connection Method: Crimping connection

Why Choose Winpower Solar Branch Connectors?

• High current and voltage capacity (up to 50A, 1500V)

• IP67 waterproof and UV-resistant for outdoor reliability

• Easy plug-and-play installation with secure locking design

• Compatible with most solar connectors and PV systems

• Excellent electrical conductivity and long service life

Applications:
Perfect for residential rooftops, commercial PV installations, off-grid solar systems, RVs, boats, and portable solar generators — wherever efficient and durable multi-panel connections are needed.

FAQs – Winpower 6-to-1 Solar Panel T Branch Connectors

1. What is the function of the Winpower 6-to-1 Solar Branch Connector?
The Winpower 6-to-1 Solar Branch Connector is designed to connect multiple solar panels in parallel, combining their output current while maintaining the same system voltage. This allows for efficient power generation in large solar setups.

2. What types of solar cables are compatible with this connector?
These connectors are compatible with solar cables ranging from 10AWG to 18AWG (1.31mm²–6mm²), making them suitable for most residential, commercial, and off-grid solar systems.

3. Is the connector waterproof and weather-resistant?
Yes. The connector is rated IP67 waterproof, which means it is fully protected against dust and can withstand water immersion. It performs reliably in rain, snow, humidity, and other harsh outdoor environments.

4. What materials are used in Winpower solar connectors?
The connectors are made from durable PPO insulation material, which is UV-resistant, flame-retardant (UL94-V0), and corrosion-resistant. The contact pins are made of silver-plated copper to ensure excellent conductivity and low contact resistance.

5. What is the rated voltage and current for this connector?
The Winpower 6-to-1 Solar Connector supports up to 1500V DC and a 50A rated current, making it ideal for high-power photovoltaic systems.

6. Can these connectors handle extreme temperatures?
Yes. They are engineered to operate in extreme weather conditions, with an operating temperature range from -40°C to +110°C (-40°F to 190°F).

7. How secure is the locking mechanism?
Each connector features a self-locking design that ensures a stable and secure connection. The built-in locking clips prevent accidental disconnection while allowing easy release by pressing both sides simultaneously.

8. Do I need any special tools to install or disconnect them?
No special tools are required. The connectors feature a snap-in design for quick installation and easy removal, making them user-friendly for both professionals and DIY solar installers.

9. What are the main applications of this product?
Winpower 6-to-1 Solar T Branch Connectors are suitable for residential rooftops, commercial solar systems, RVs, campers, boats, and off-grid power setups—anywhere multiple solar panels need to be connected in parallel.

10. Why should I choose Winpower over other brands?
Winpower solar connectors are TÜV certified, built with premium materials, and tested for durability, waterproof performance, and safety. They ensure a stable, low-loss connection for long-term operation in demanding environments.
