300/500V H05V-K TÜV Certified Solar Cable 4mm² Copper PV Cable
Product Parameters
-

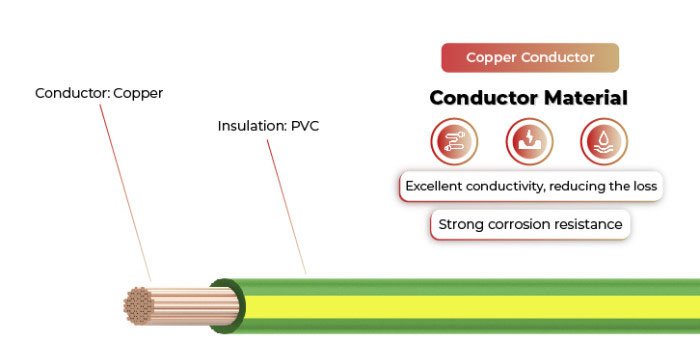

Conductor: 0.5~1mm², stranded tinned or bare copper for superior conductivity and corrosion resistance
-
Insulation Color: Yellow & green
-
Rated Temperature: -15°C to 70°C
-
Rated Voltage: 300/500V
-
Insulation: RoHS-compliant PVC
-
Flame Test: IEC60332-1 compliant
-
Reference Standard: EN50525-2-31
H05V-K Solar Cable Product Description
|
Cable Name |
Cross Section |
Insulation Thickness |
Cable O.D. |
Conductor Resistance Max |
|
(mm²) |
(mm) |
(mm) |
(Ώ/km,20°C) |
|
|
300/500V Solar Cable H05V-K TÜV |
0.5 |
0.6 |
2.3 |
39 |
|
0.75 |
0.6 |
2.4 |
26 |
|
|
1 |
0.6 |
2.6 |
19.5 |
Product Features
-
Easy to Peel: PVC insulation allows for effortless stripping, simplifying installation
-
Easy to Cut: Designed for clean and precise cutting, reducing installation time
-
High Flexibility: Stranded copper conductor ensures excellent bendability for complex wiring setups
-
High Concentricity: Uniform conductor structure enhances electrical performance and reliability
-
High Flame Retardant (IEC60332-1): Meets stringent fire safety standards for enhanced protection
-
RoHS-Compliant PVC Insulation: Environmentally friendly materials ensure compliance with global standards
-
Tinned or Bare Copper Options: Tinned copper provides corrosion resistance, while bare copper offers cost-effective conductivity
-
Durable and Lightweight: PVC insulation ensures durability while maintaining ease of handling
Application Scenarios
The 300/500V H05V-K TÜV Certified Solar Cable is ideal for a variety of solar and electrical applications, including:
-
Residential Solar Systems: Perfect for connecting solar panels, inverters, and charge controllers in home solar setups
-
Commercial Solar Installations: Suitable for small to medium-scale commercial solar projects requiring flexible, flame-retardant cables
-
Indoor and Outdoor Wiring: Designed for use in dry or moderately humid environments, such as rooftop solar arrays or indoor solar equipment connections
-
Low-Voltage Solar Applications: Ideal for low-voltage systems, including off-grid solar setups for cabins, RVs, or agricultural applications
-
General Electrical Wiring: Versatile for use in control panels, lighting systems, and other low-voltage electrical installations
-
Eco-Friendly Projects: RoHS-compliant materials make it suitable for environmentally conscious solar installations
Choose our 300/500V H05V-K TÜV Certified Solar Cable for a reliable, flexible, and safe solution from trusted PV wire manufacturers. This solar cable is engineered for ease of installation, high performance, and compliance with stringent safety standards, making it the perfect choice for your solar energy needs.
