1.5kV 2PfG 2642 PV1500DC-AL-K DB TÜV Certified Solar Cable 4mm² Aluminum PV Wire

1.5kV 2PfG 2642 PV1500DC-AL-K DB TÜV Certified Solar Cable 4mm² Aluminum PV Wire Featured Image
  • 1.5kV 2PfG 2642 PV1500DC-AL-K DB TÜV Certified Solar Cable 4mm² Aluminum PV Wire

The 1.5kV 2PfG 2642 PV1500DC-AL-K DB TÜV Certified Solar Cable is a high-performance single-core photovoltaic (PV) wire designed for robust solar energy applications. Available in 1×2.5~400mm², this aluminum PV wire offers excellent conductivity, durability, and flexibility, making it ideal for demanding solar installations. Certified to 2PfG 2642 and TÜV standards, this cable ensures safety, reliability, and compliance for residential, commercial, and utility-scale solar projects.


Product Detail

Product Tags

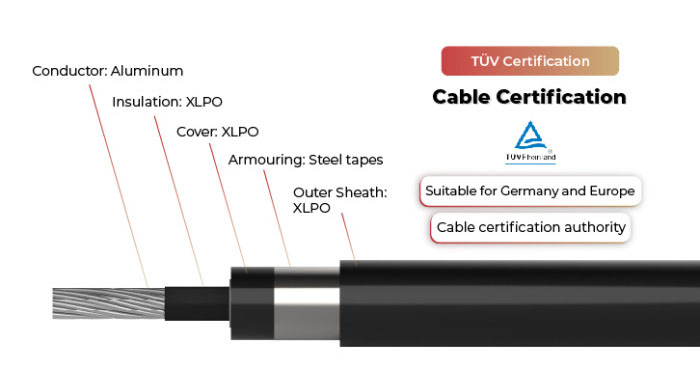

aluminum pv wire-8

Product Parameters

  • Conductor: 1×2.5~400mm², stranded aluminum alloy, Class 5, for lightweight and efficient power transmission

  • Insulation Color: Black

  • Jacket Color: Black

  • Rated Temperature: -40°C to 90°C

  • Max. Short Circuit Temperature: 250°C for 5 seconds

  • Tested Voltage: 6.5kVAC for 5 minutes

  • Rated Voltage: DC 1500V, U0/U = 1000V

  • Insulation: XLPO (Cross-Linked Polyolefin)

  • Cover: XLPO

  • Armouring: Steel tapes for enhanced mechanical protection

  • Outer Sheath: XLPO

  • Flame Test: IEC 60332-1 compliant

  • Reference Standard: 2PfG 2642, TÜV

2PfG 2642 PV1500DC-AL-K DB Solar Cable Product Description

Cable Name Cross Section Insulation Thickness Jacket Thickness Armored O.D. Cable O.D. Conductor Resistance Max
(mm²) (mm) (mm) (mm) (mm) (Ώ/km,20°C)
1.5kV Solar Cable Single Core 2PfG 2642 PV1500DC-AL-K DB TÜV 2.5 0.7 1.5 6.5 9.5 13.2
4 0.7 1.5 7 10 8.1
6 0.7 1.5 7.5 10.5 5.05
10 0.8 1.5 8.7 11.7 3.08
16 0.9 1.5 10 13 1.91
25 1 1.5 11.5 14.5 1.2
35 1.1 1.5 12.8 15.8 0.868
50 1.2 1.5 14.4 17.4 0.641
70 1.2 1.13 16.3 19.3 0.443
95 1.3 1.6 18.3 21.5 0.32
120 1.3 1.6 19.8 23 0.253
150 1.4 1.7 21.7 25.1 0.206
185 1.6 1.7 23.8 27.2 0.164
240 1.7 1.8 27 30.6 0.125
300 1.8 1.9 29.6 33.4 0.1
400 2 2 34.5 38.5 0.0778

Product Features

  • Suitable for Direct Burial: Engineered for underground installations without additional conduit

  • UV Resistant: Withstands prolonged exposure to sunlight, ensuring long-term performance in outdoor environments

  • Radial Humidity Resistant: Designed to resist moisture ingress, ideal for wet and humid conditions

  • Flame Retardant (IEC 60332-1): Meets stringent fire safety standards for enhanced protection

  • Steel Tapes Armored: Provides robust mechanical protection and serves as grounding and protective earth

  • High Voltage Capability: Rated for 1.5kV DC, suitable for high-voltage solar systems

  • Lightweight Aluminum Conductor: Stranded aluminum alloy reduces weight while maintaining excellent conductivity

  • Durable XLPO Insulation and Sheath: Ensures superior resistance to environmental stress and electrical breakdown

  • Flexible Design: Class 5 stranded conductor enhances ease of installation in complex setups

Application Scenarios

The 1.5kV 2PfG 2642 PV1500DC-AL-K DB Solar Cable is engineered for a wide range of solar and renewable energy applications, including:

  • Utility-Scale Solar Farms: Ideal for connecting solar panels, inverters, and grid systems in large-scale photovoltaic projects

  • Direct Burial Installations: Perfect for underground wiring in solar farms and remote renewable energy setups

  • Rooftop Solar Systems: Suitable for residential and commercial rooftop installations requiring high-voltage, UV-resistant cables

  • Harsh Environmental Conditions: Performs reliably in extreme climates, including deserts, coastal areas, and high-humidity regions

  • Grounding and Protective Earth Applications: Steel tape armouring makes it ideal for use as a grounding conductor in solar installations

  • Off-Grid Solar Systems: Supports off-grid setups for remote locations, agricultural applications, and standalone power systems

Choose our 1.5kV 2PfG 2642 PV1500DC-AL-K DB TÜV Certified Solar Cable for a durable, high-performance solution from trusted PV wire manufacturers. This solar cable delivers unmatched reliability, safety, and efficiency for your solar energy needs, even in the most challenging environments.
